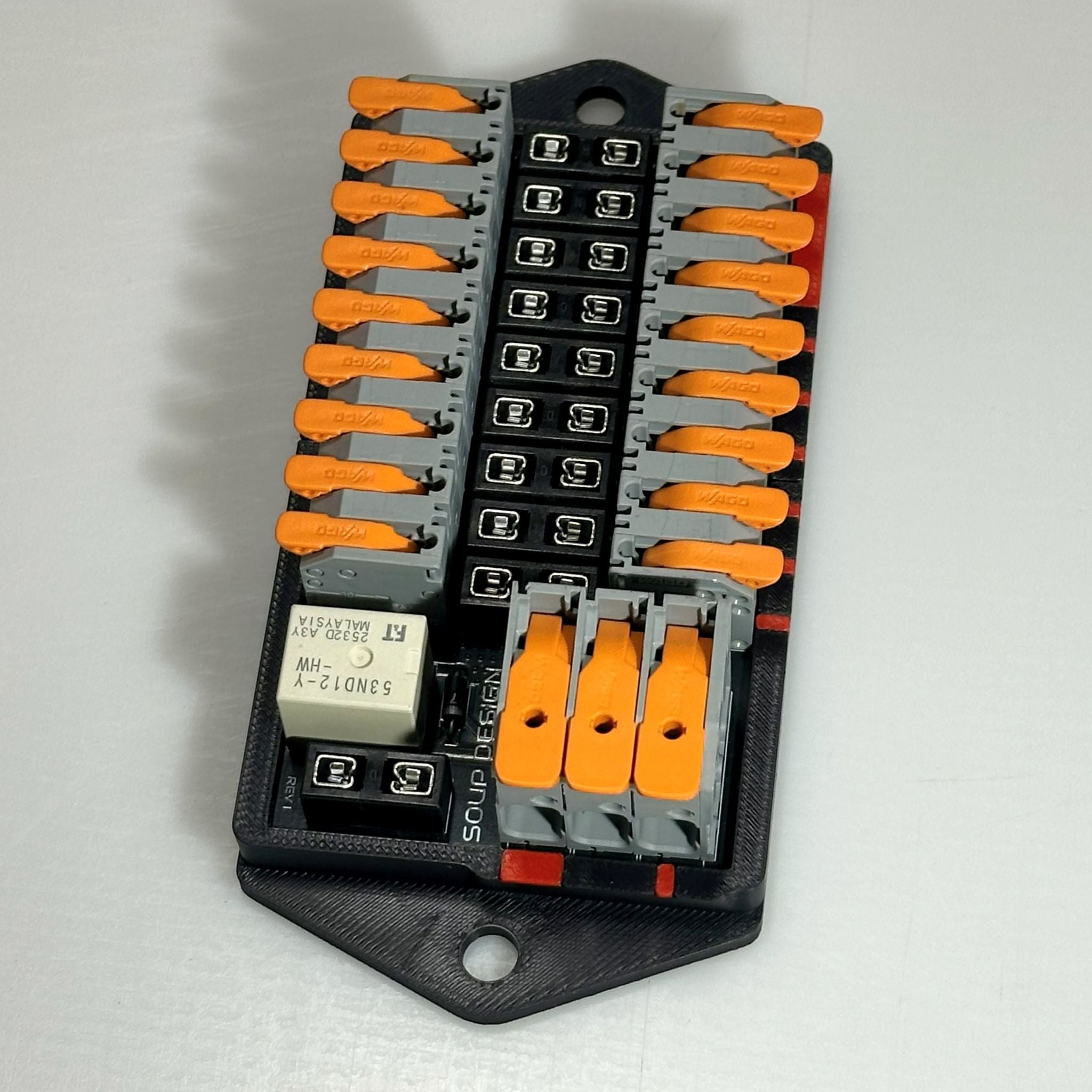

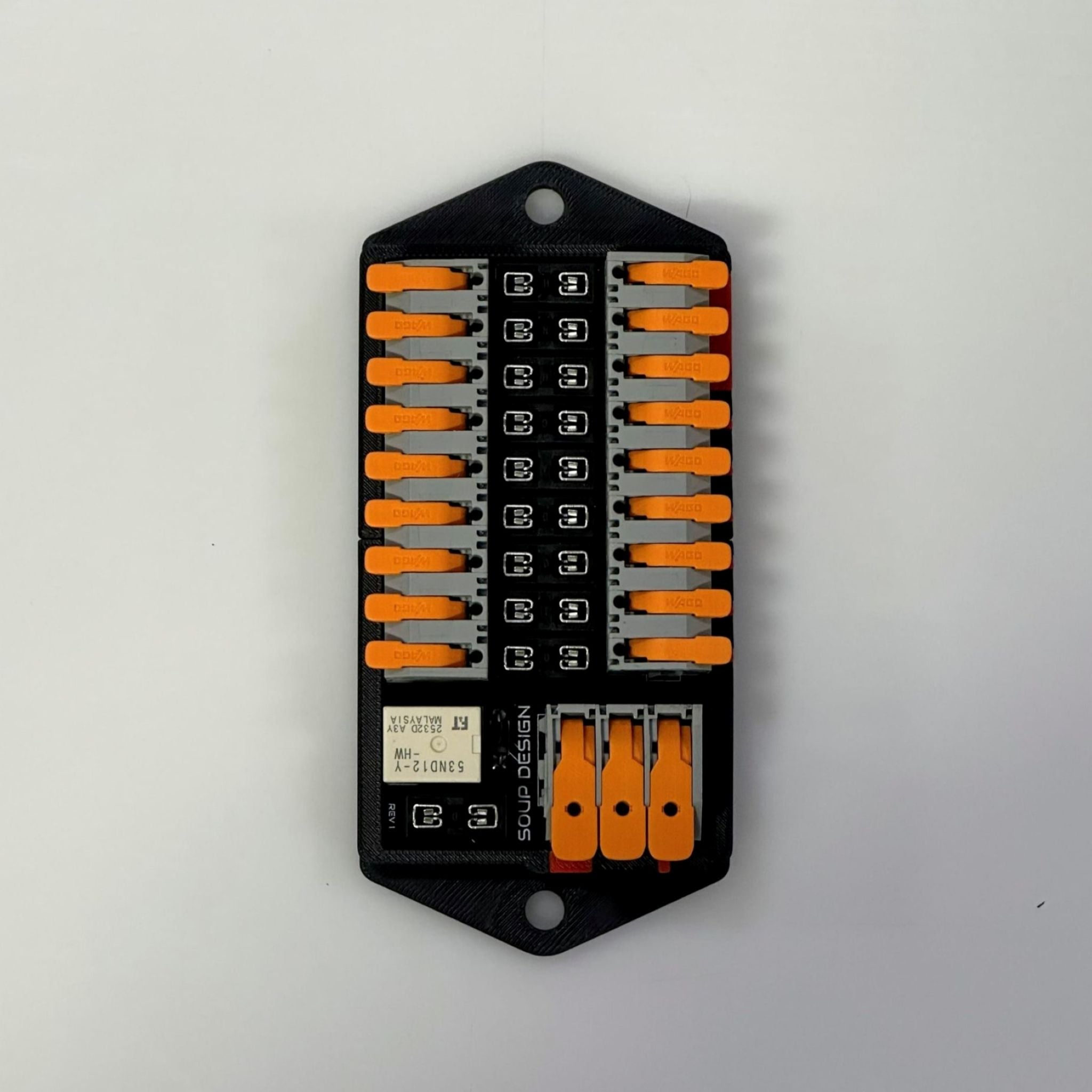

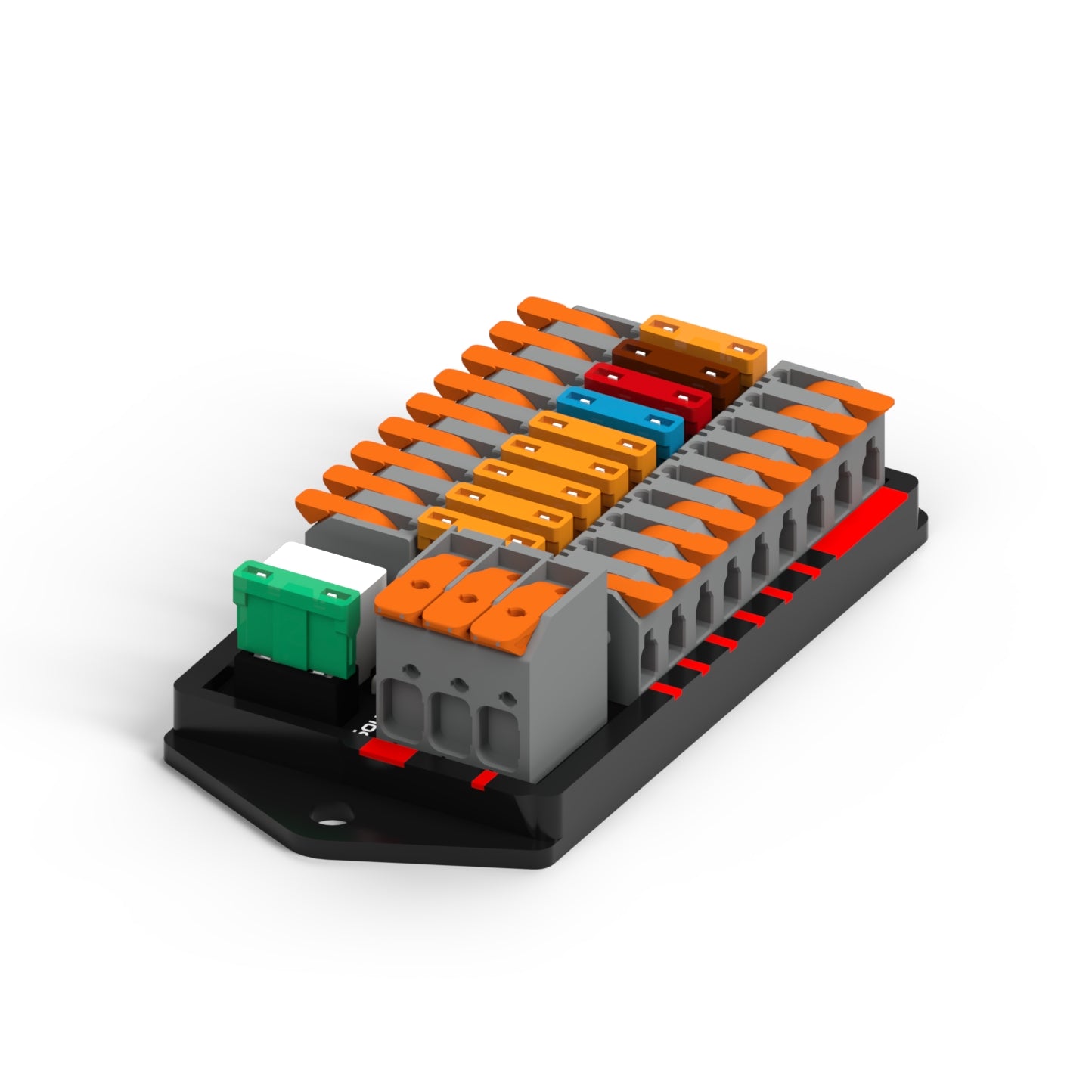

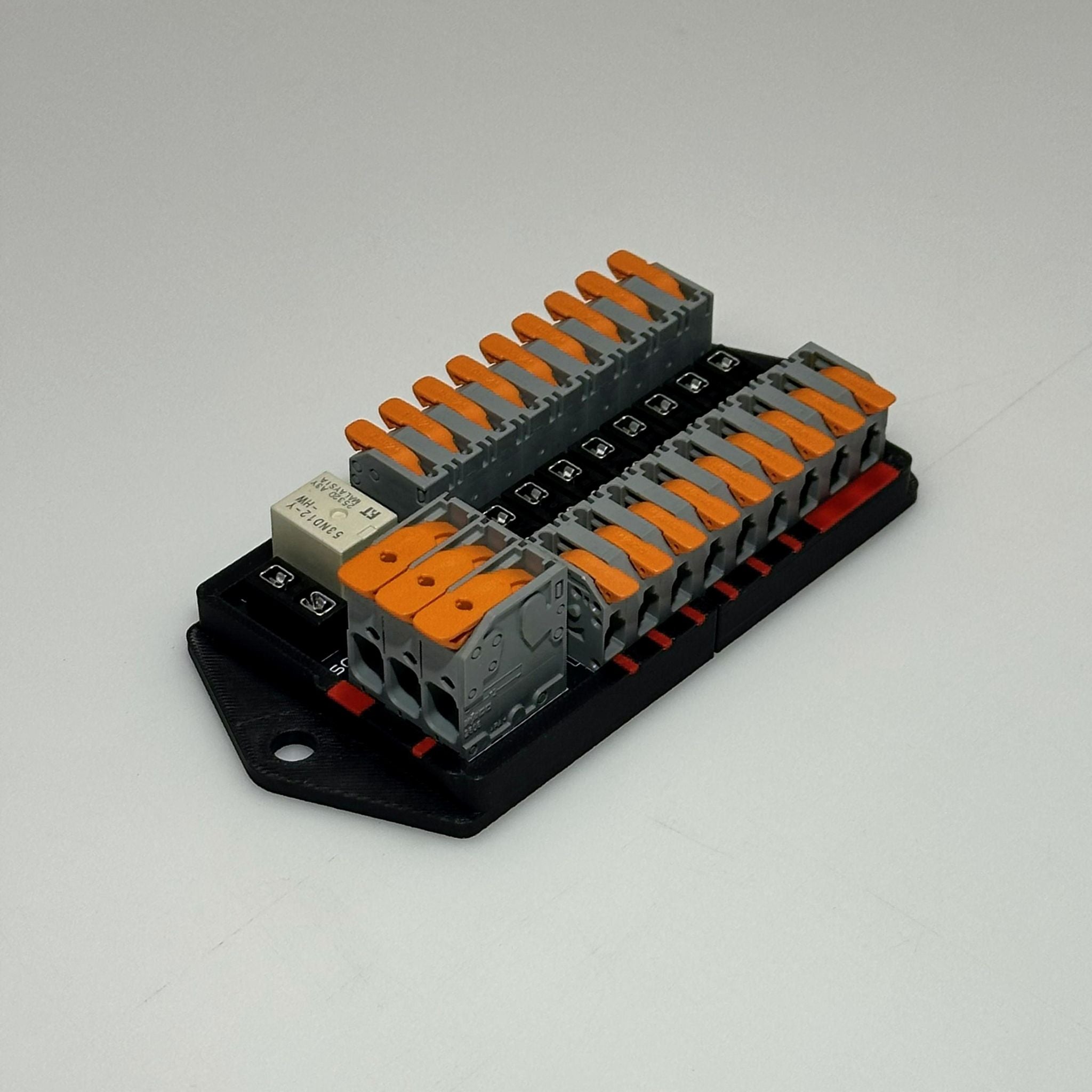

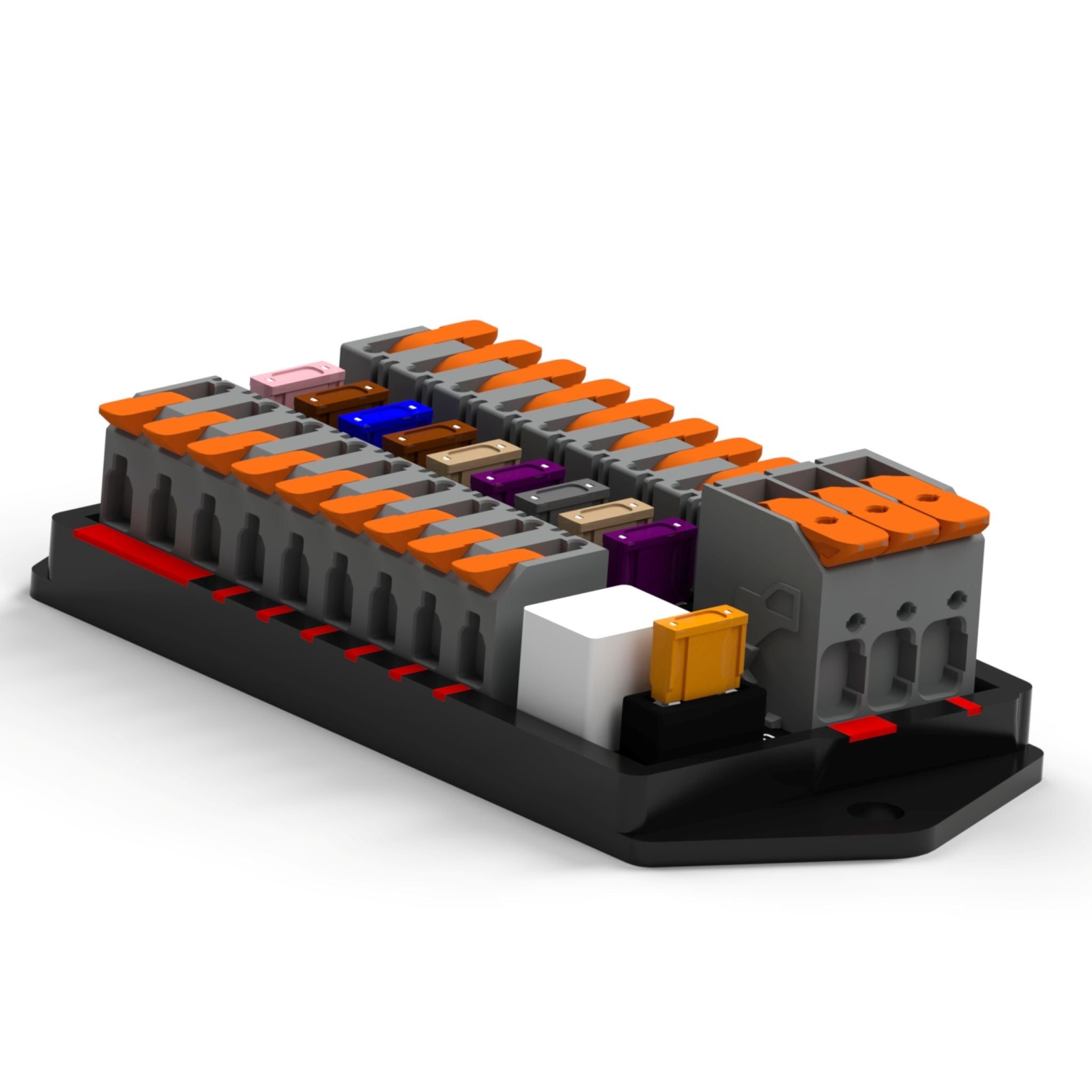

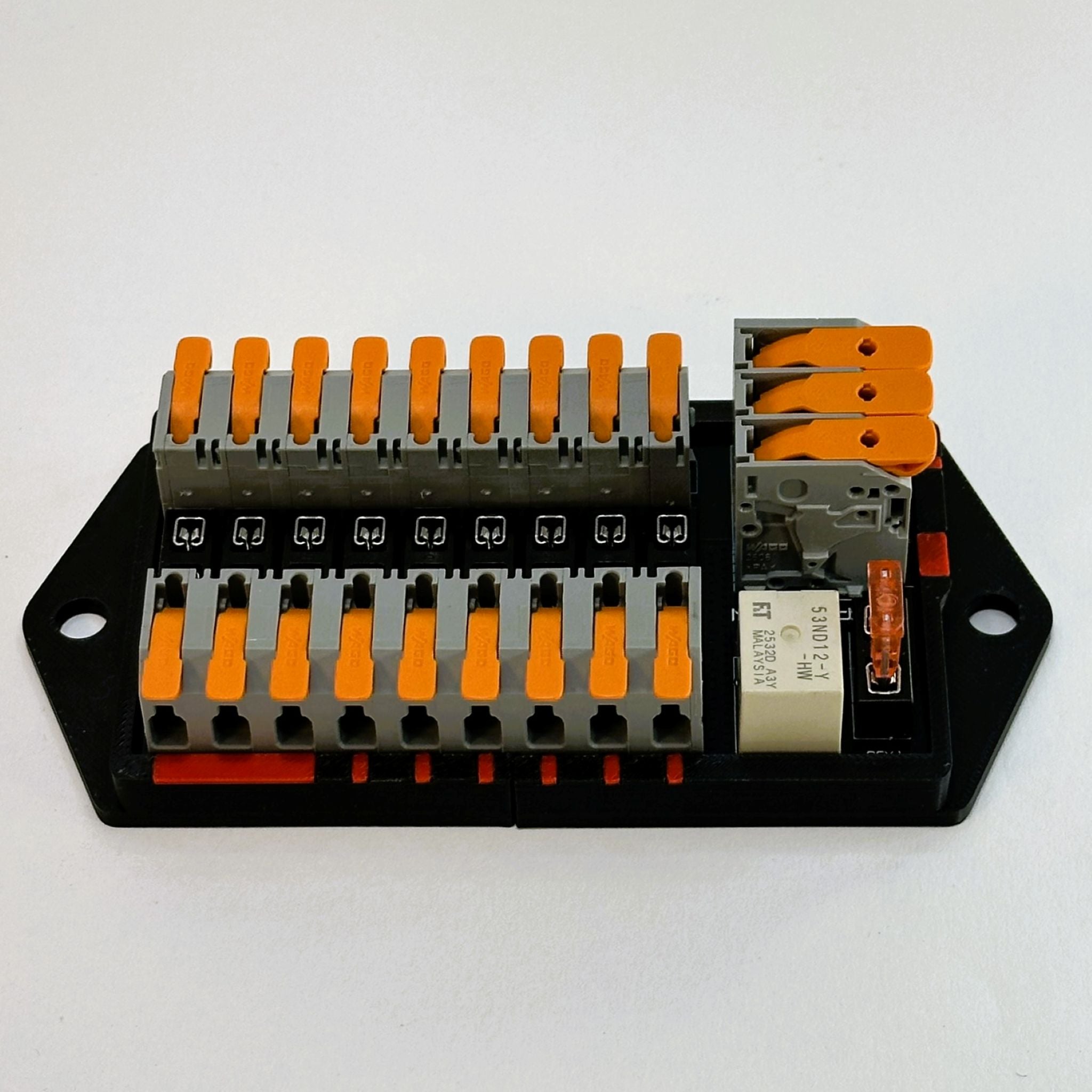

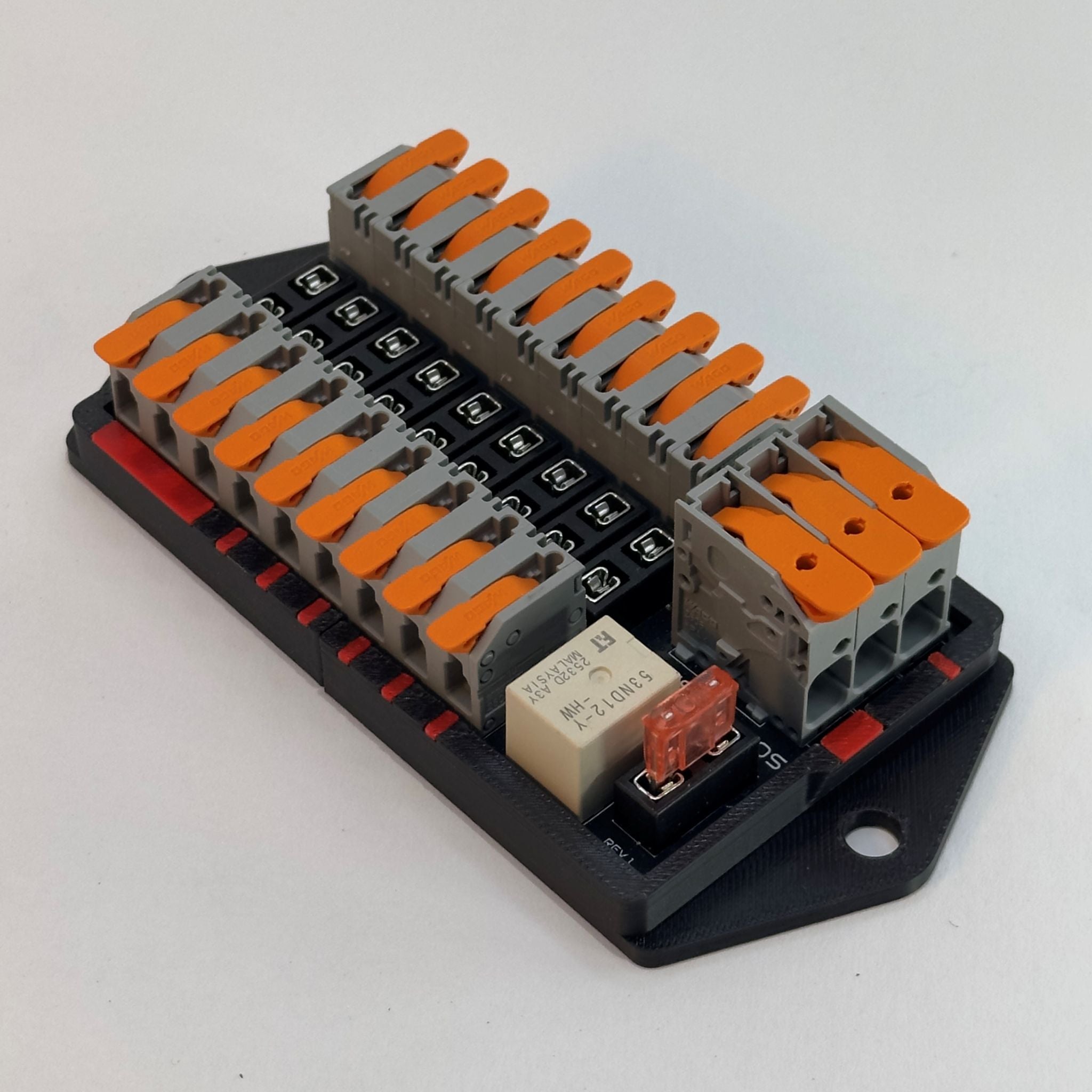

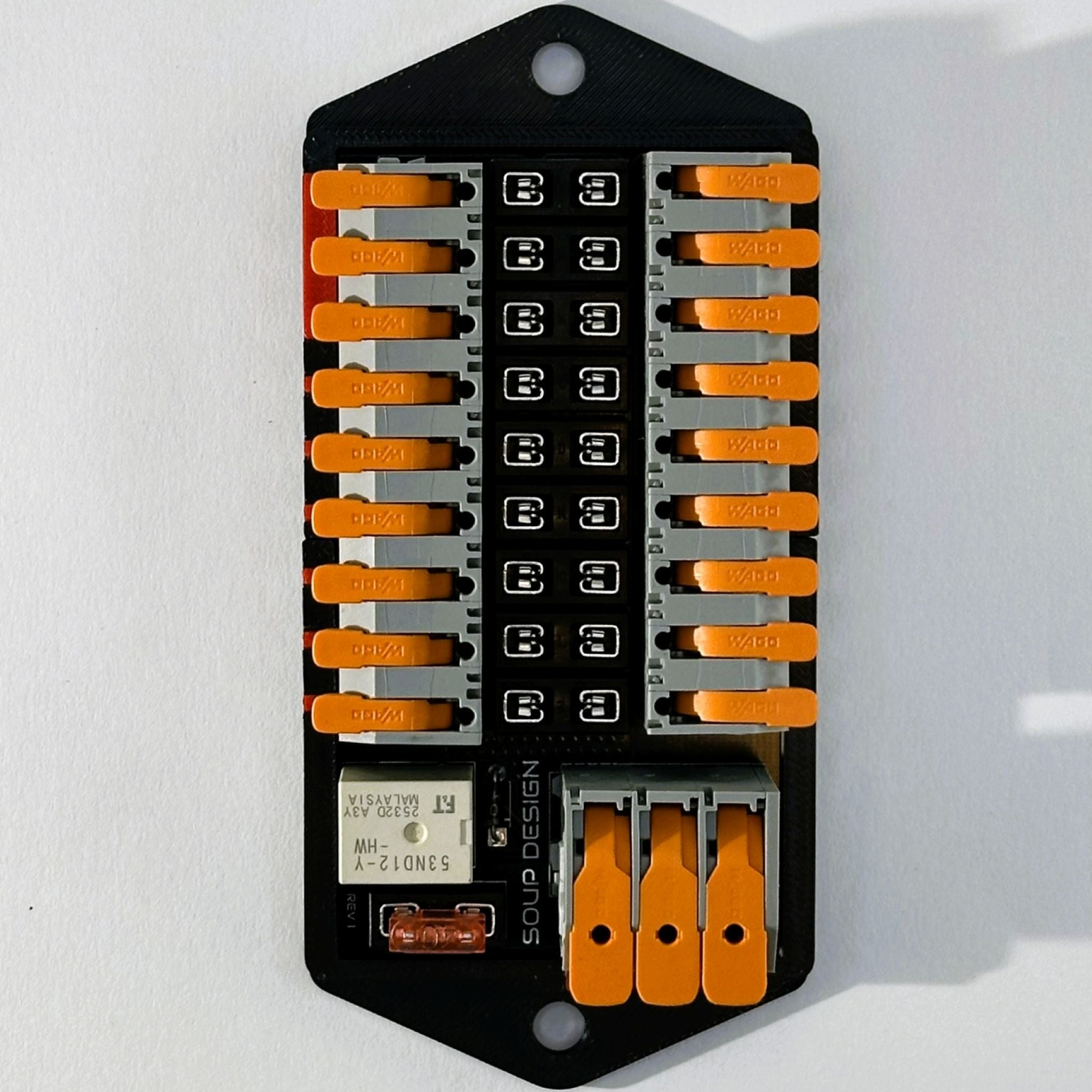

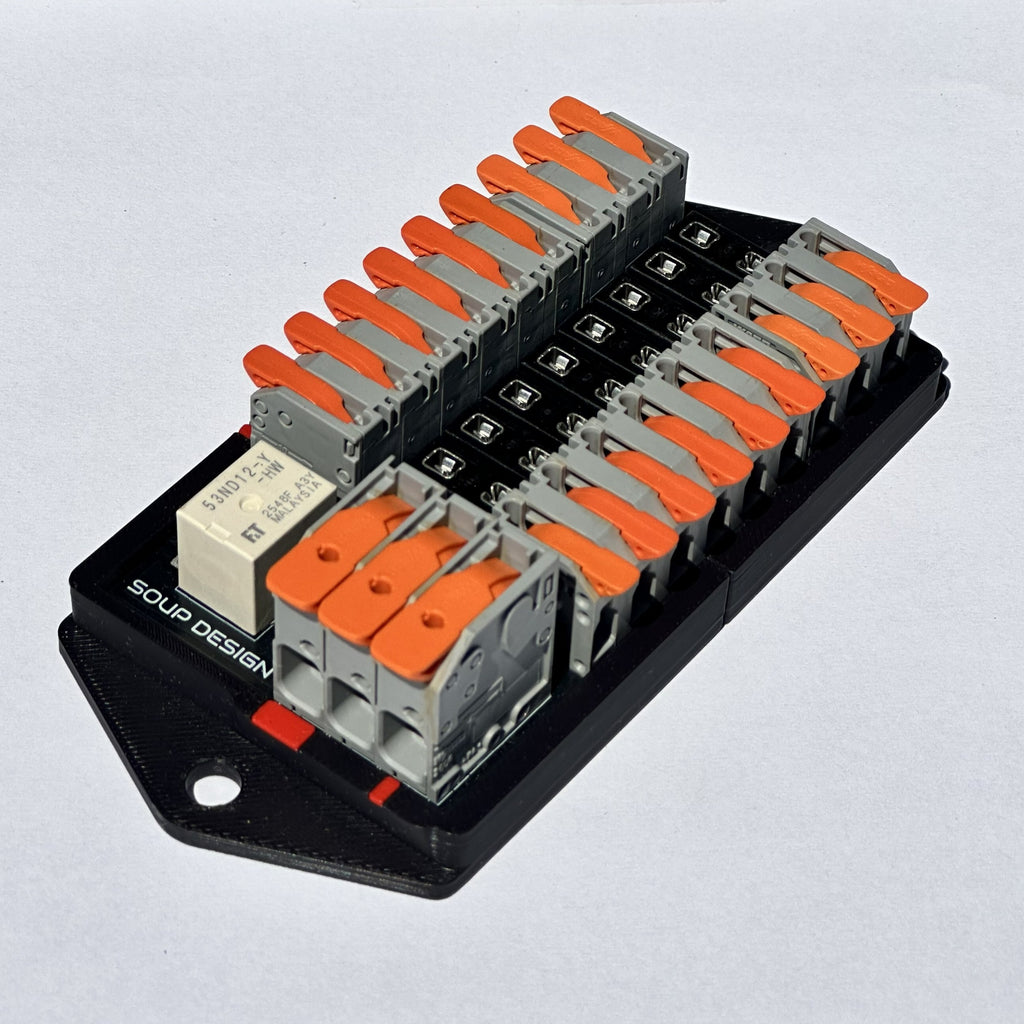

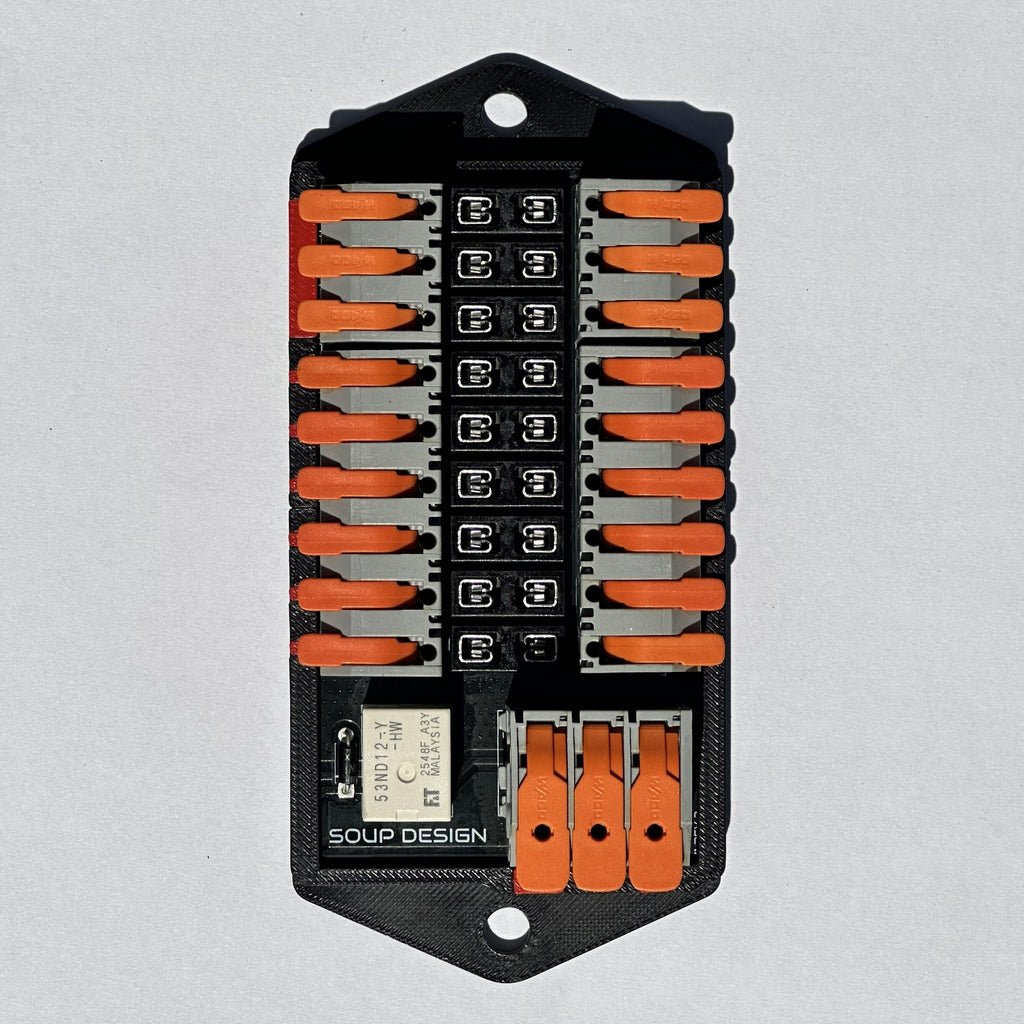

Toolless power distribution board greatly reduces wiring time while providing consistent reliable connections using genuine Wago connectors

Specifications/Features

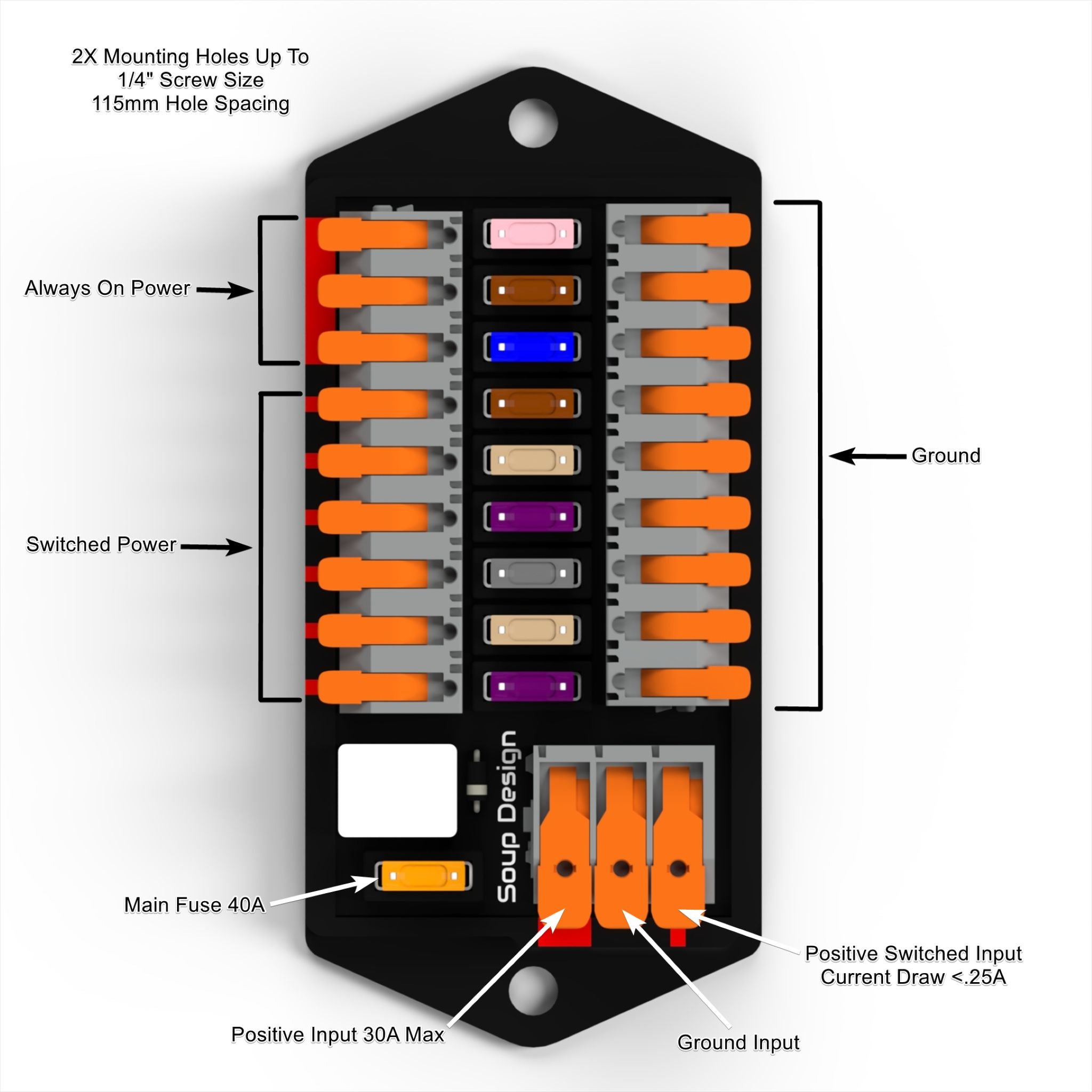

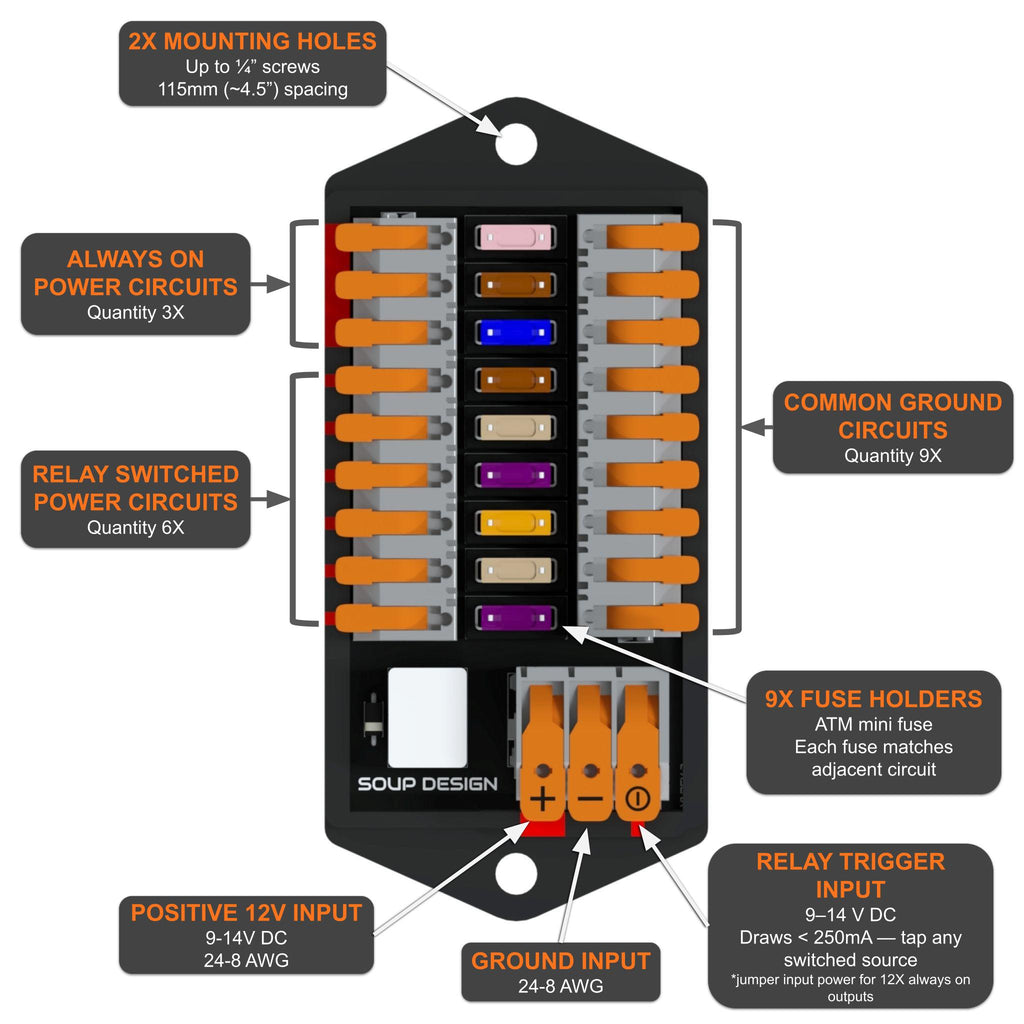

• 9 fused circuits
  • 6 switched circuits
  • 3 always on
• Maximum 30A input (24-8AWG)
• Maximum 20A individual circuit output (24-12AWG)
• Input fuse allows connection to existing fused circuits without risk of downstream failure
• Fuse Type: ATM Mini

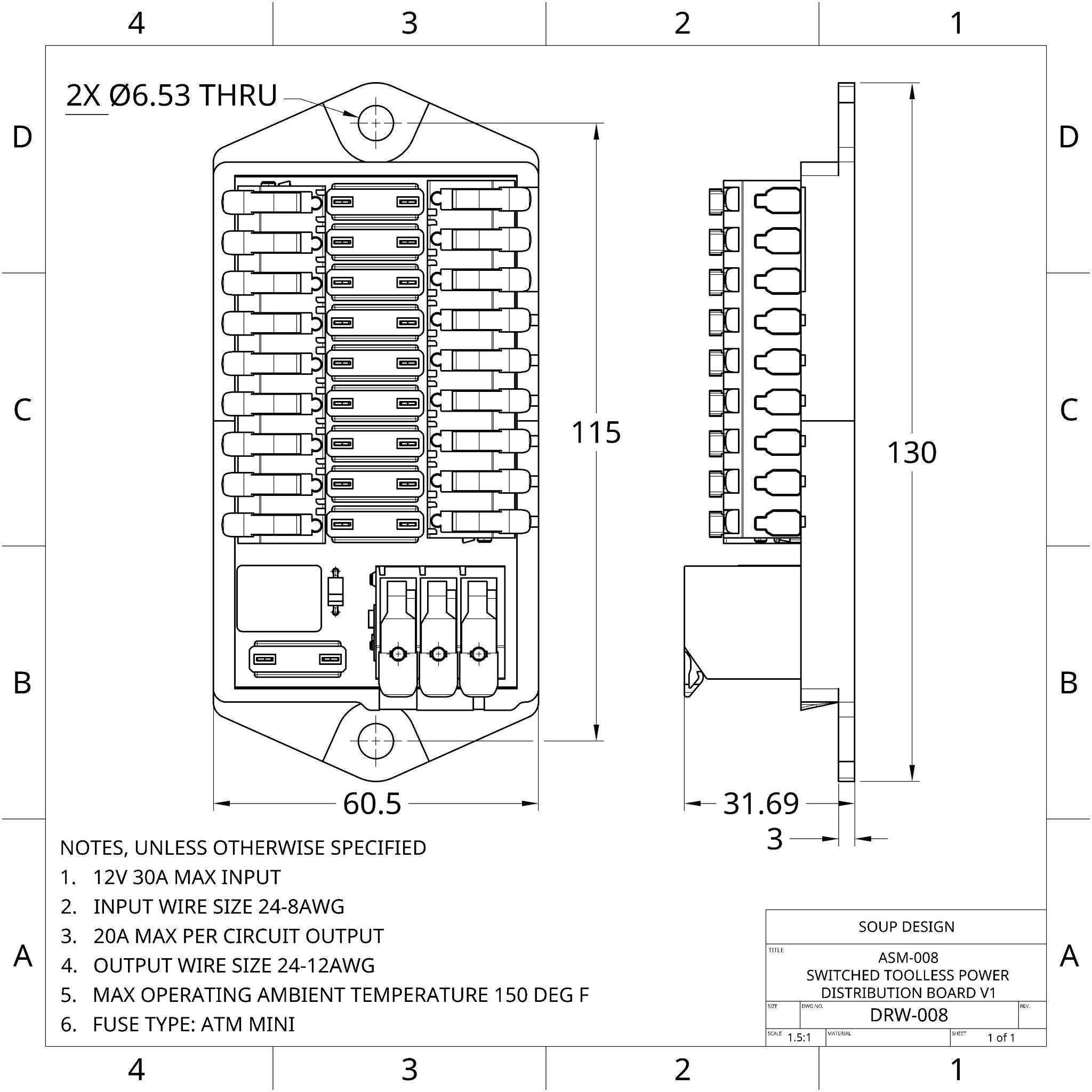

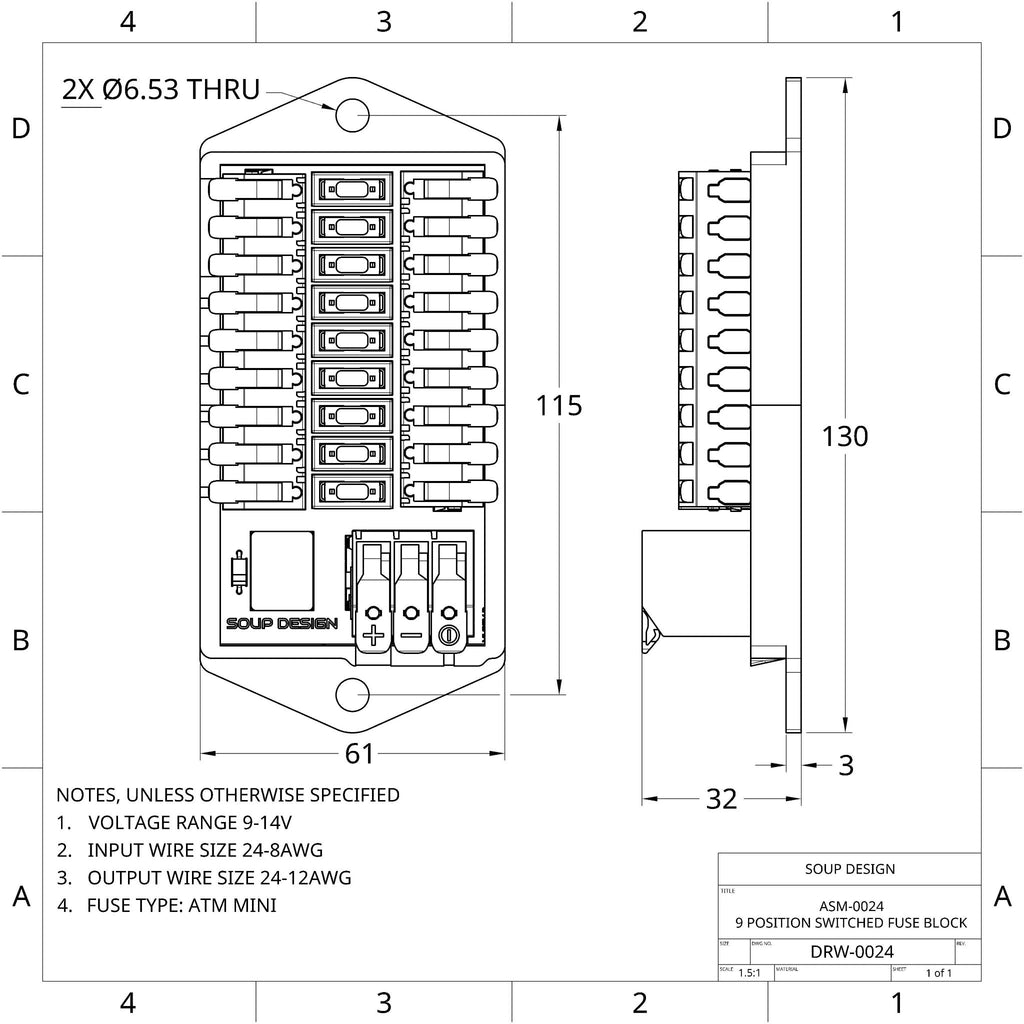

• Mounting Holes: 2X up to 1/4" screw
• Enclosure Type: ASA FDM 3D printed
• Max Ambient Temperature: 150 deg F
