Discounted Price Low Amperage Version, coming soon more POWWWER!!

Soup Design's Toolless Fuse Block greatly reduces wiring time while providing consistent reliable connections using genuine Wago connectors.

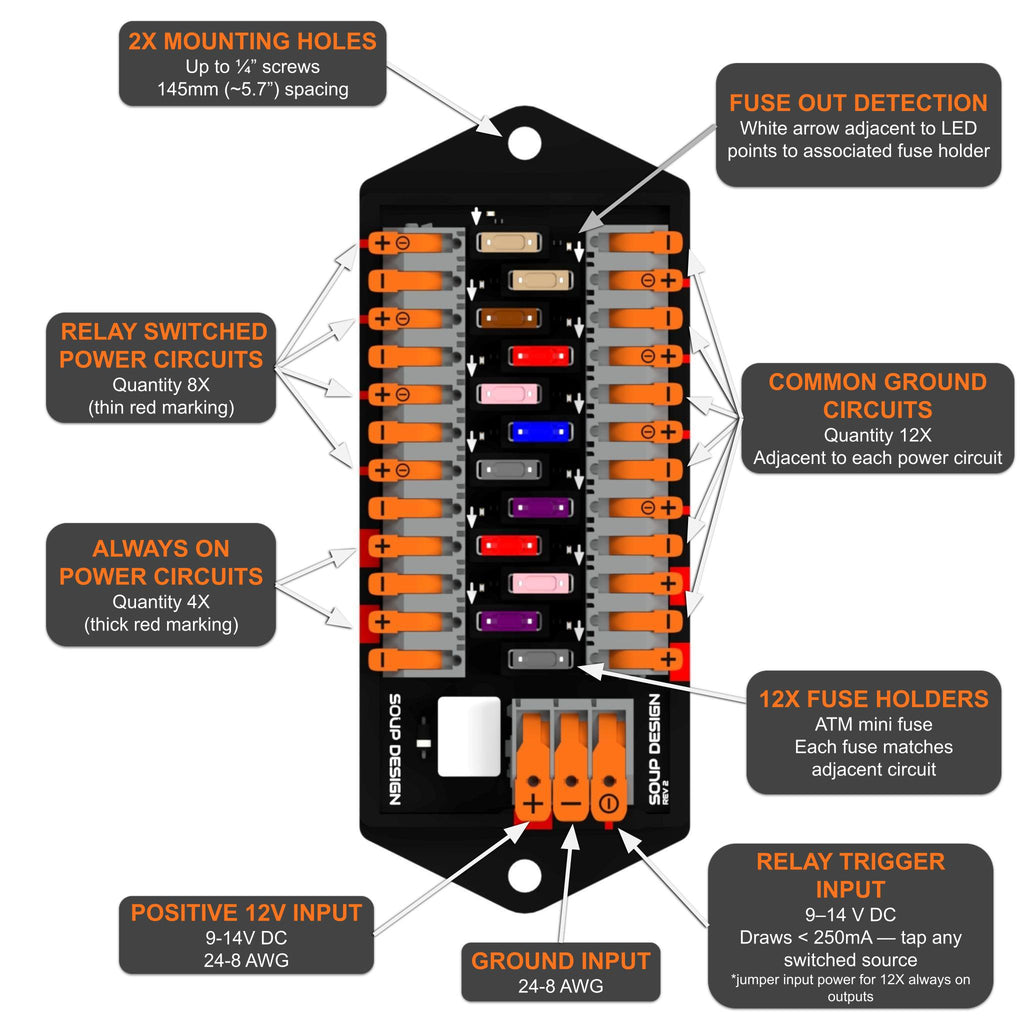

Specifications/Features

• 12 fused circuits
  • 8 switched circuits
  • 4 always on
• Adjacent power and ground outputs for each circuit
• Input Current Max: 25 amps (24-8AWG)
• Relay Throughput Max: 20 amps
• Individual Circuit Output: 15 amps (24-12AWG)

• Fuse Type: ATM Mini
• Fuse Out Detection: Bright LED indicators eliminate searching for bad fuses

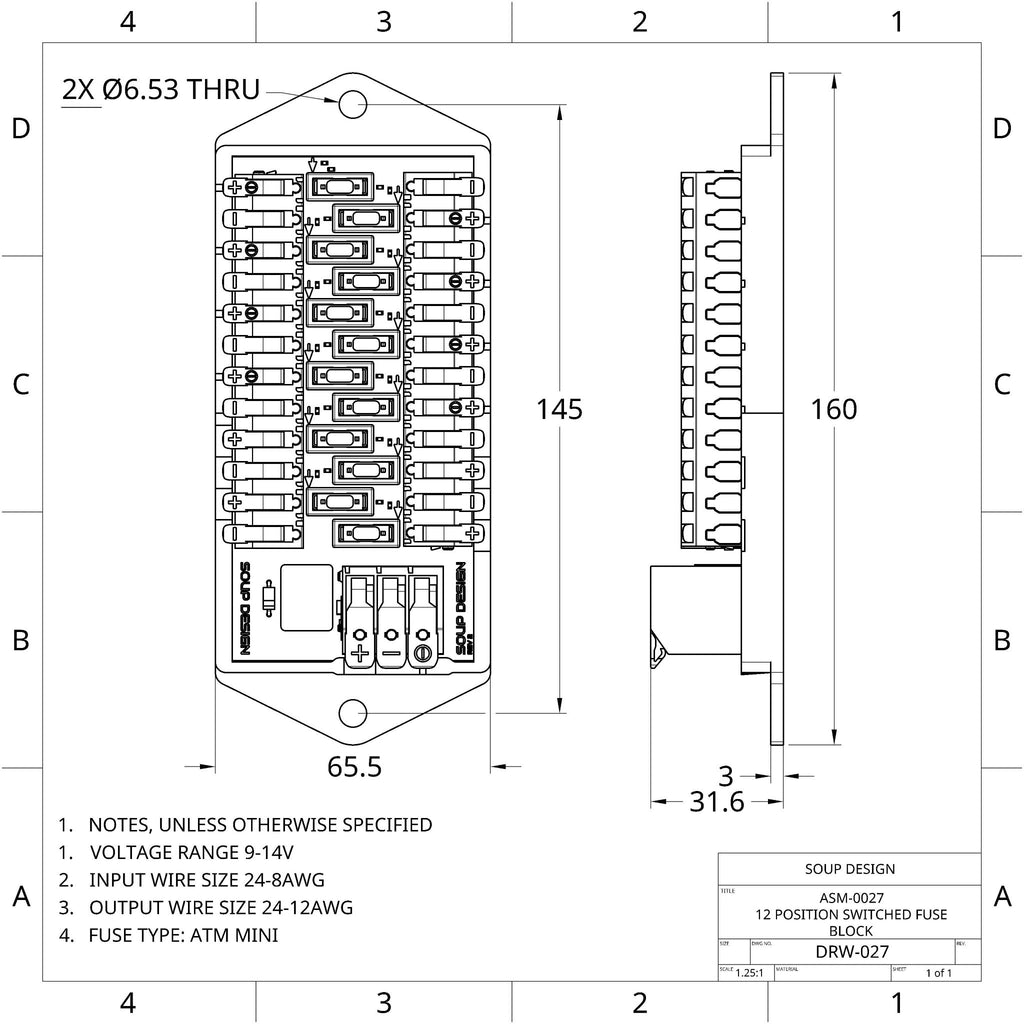

• Mounting Holes: 2X up to 1/4" screw
• Enclosure Type: ASA FDM 3D printed
• Max Ambient Temperature: 150 deg F

• A 12V input wire is required to switch the relay. This wire only requires 250mA so it can be pulled from practically anywhere. (24-8AWG)
